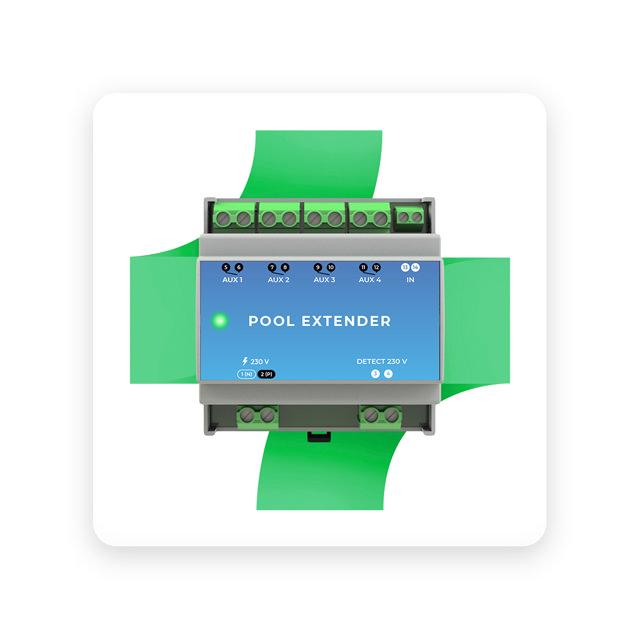

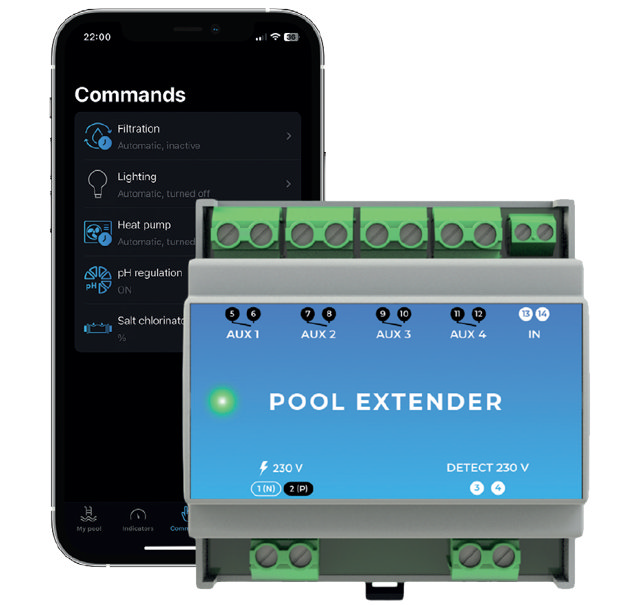

Bluematic Pool Command extender

Smart 4-Relay Expansion Module

Need more control for your pool installation? The bluematic Pool Extender adds four additional relay-controlled outputs, allowing you to automate more equipment like garden lighting, counter-current systems, or additional treatment modules.

• 4 programmable relays for added equipment
• Control via Bluetooth or remotely via LoRa antenna
• Compatible with lighting, heat pumps, treatment units and more
• Blueplus treatment integration
• Devices can follow filtration status
• Option to trigger via external actuator or switch
• Designed to expand bluematic Pool Command setups



TECHNICAL SPECIFICATIONS

1. INSTALLATION

• 203V 50Hz power supply
• Relay 4: 250VAC-10A
• Dry contact input
• Phase detection
• DIN rail mounting (5 modules)
• Temperature: -10°C to 60°C
• 3 years warranty

2. PACKAGING CONTENT

• Pool Command extender
